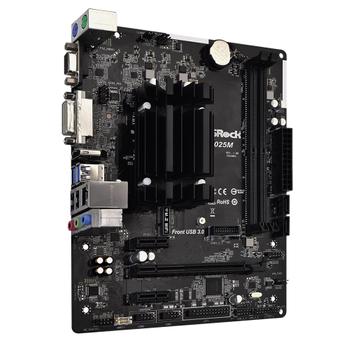

ASROCK J4025M Micro Atx

J4025M

• ASRock Super Alloy
• Intel® Dual-Core Processor J4025 (Up to 2.9 GHz)
• Supports DDR4 2133/2400 Long DIMM
• 1 PCIe 2.0 x16 (x1 mode), 2 PCIe 2.0 x1
• 1 M.2 Key E for WiFi (Intel® CNVi Only)
• Graphics Output Options: D-Sub, HDMI, DVD-D
• Supports 4K x 2K @60Hz
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
• 2 SATA3
• 4 USB 3.2 Gen1 (2 Front, 2 Rear)
• Supports Full Spike Protection, ASRock Live Update & APP Shop

• ASRock Super Alloy
  • Sapphire Black PCB
  • High Density Glass Fabric PCB
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• Intel® Dual-Core Processor J4025 (up to 2.9 GHz)

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
• Max. capacity of system memory: 8GB

• 128Mb AMI UEFI Legal BIOS with GUI support
• Supports Plug and Play
• ACPI 5.0 compliant wake up events
• Supports jumperfree
• SMBIOS 3.0 support

• Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 700MHz)
• DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
• HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
• HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
• Three graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
• Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
• Supports HDCP 2.2 with DVI-D and HDMI 2.0 Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports

• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• Supports Surge Protection
• ELNA Audio Caps

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111E
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
• 2 x PCI Express 2.0 x1 Slots
• 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVi (Integrated WiFi/BT)

• 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

• 1 x Print Port Header
• 2 x COM Port Headers
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (3-pin)
• 1 x Chassis Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x Front Panel Audio Connector
• 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

• ASRock Instant Flash

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
• Solid Capacitor design

• Microsoft Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
