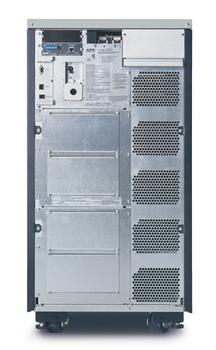

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V SYA8K16I APC Symmetra LX, 8000VA/5600W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card Output Output Power Capacity 5600 Watts / 8000 VA Max Configurable Power 11200 Watts / 16000 VA Nominal Output Voltage 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 90% Output Voltage Distortion Less than 5% at full load Output Frequency (sync to mains) 47 - 63 Hz Crest Factor up to 5 : 1 Waveform Type Sine wave Output Connections (1) Hard Wire 3-wire (H N + G) Input Bypass Internal Bypass (Automatic and Manual) Nominal Input Voltage 230V,400V 3PH Input Frequency 45 - 65 Hz (auto sensing) Input Connections Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) Input voltage range for main operations 155 - 276,290 - 480 (3:1)V Other Input Voltages 220V,240V,380V,415V Batteries & Runtime Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 2 Available Battery Slots 2 Typical recharge time 3 hour(s) Typical Backup Timeat Half Load 20.2 minutes (2800 Watts) Typical Backup Timeat Full Load 7.5 minutes (5600 Watts) Runtime Chart Symmetra LX Extended Run Options APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V Communications & Management Interface Port(s) DB-9 RS-232,Smart-Slot Available SmartSlot™ Interface Quantity 1 Pre-Installed SmartSlot™ Cards AP9619 Control panel Multi-function LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Physical Maximum Height 36.90 inches (937 mm) Maximum Width 19.00 inches (483 mm) Maximum depth 28.60 inches (726 mm) Net Weight 483.00 lbs. (219.55 kg) Shipping Weight 521.00 lbs. (236.82 kg) Shipping Height 46.50 inches (1181 mm) Shipping Width 23.60 inches (599 mm) Shipping Depth 39.25 inches (997 mm) Color Black,Silver Units per Pallet 1.00 Environmental Operating Environment 32 - 104 °F (0 - 40 °C) Operating Relative Humidity 0 - 95% Operating Elevation 0-10000 feet (0-3000 meters) Storage Temperature 5 - 113 °F (-15 - 45 °C) Storage Relative Humidity 0 - 95% Storage Elevation 0-15000 feet (0-4500 meters) Audible noise at 1 meter from surface of unit 62 dBA Online Thermal Dissipation 3707 BTU/hr Conformance Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE Standard Warranty 2 years repair or replace
