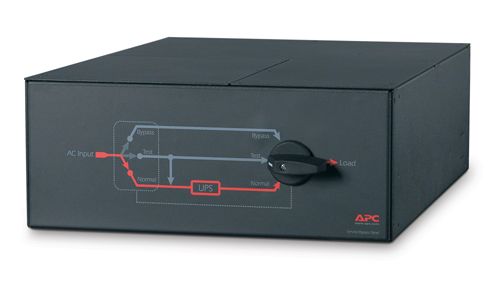

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19 APC Maintenance Bypass Panels , Input: 230V , Input Connection Type: Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (3PH + N) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19 Includes: Installation Guide, Rack Mounting Brackets, User Manual Features: 19 inch Rack-Mountable High Power Density Technical Specifications Nominal output voltage 230V Maximum Total Current Draw per Phase 100 Output Connections (8) IEC 320 C13 (2) IEC 320 C19 Overload Protection Yes Nominal input voltage 230V Input frequency 50/60 Hz Input Connection Type Hard Wire 3 wire (1PH+N+G) Hard Wire 4-wire (3PH + N) Maximum Line Current per phase 100 A Maximum Input Current per phase 100 A Load Capacity 20,000 VA Load Power Factor Range 0 to 1 Net weight 46 lbs. ( 21 kg ) Maximum height 7 inches ( 18 cm ) Maximum width 17 inches ( 43 cm ) Maximum depth 26.50 inches ( 67.31 cm ) Shipping Weight 69 lbs. ( 31 kg ) Shipping Height 12 inches ( 30 cm ) Shipping Width 24 inches ( 61 cm ) Shipping Depth 39 inches ( 99 cm ) Color Black Units per Pallet 6 Operating Environment -20 - 50 °C ( -4 - 122 °F ) Operating Relative Humidity 0 - 95 % Operating Elevation 0-15000 feet ( 0-4500 meters ) Storage Temperature -40 - 65 °C ( -40 - 149 °F ) Storage Relative Humidity 0 - 95 % Storage Elevation 0-50000 feet ( 0-15000 meters ) Approvals CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 Standard warranty 2 years parts
